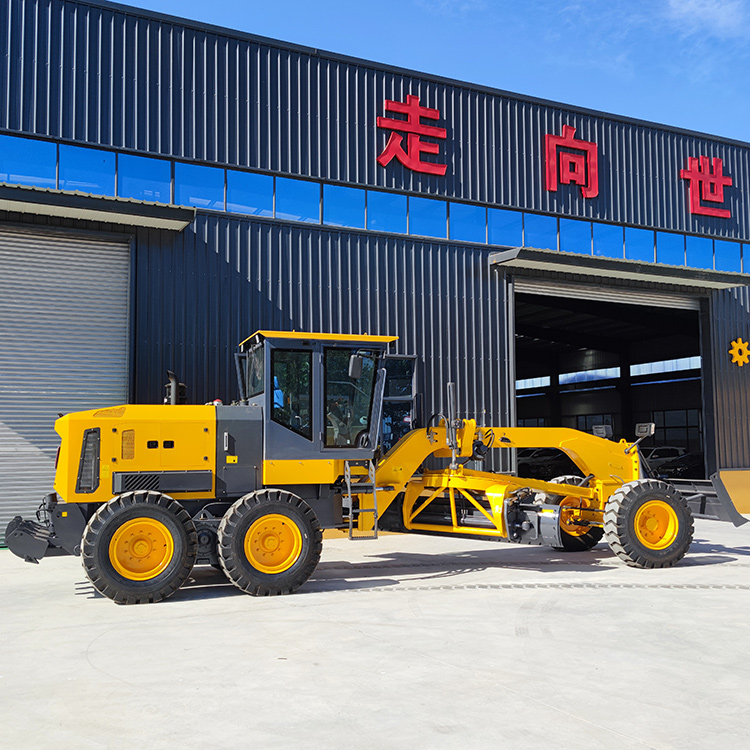

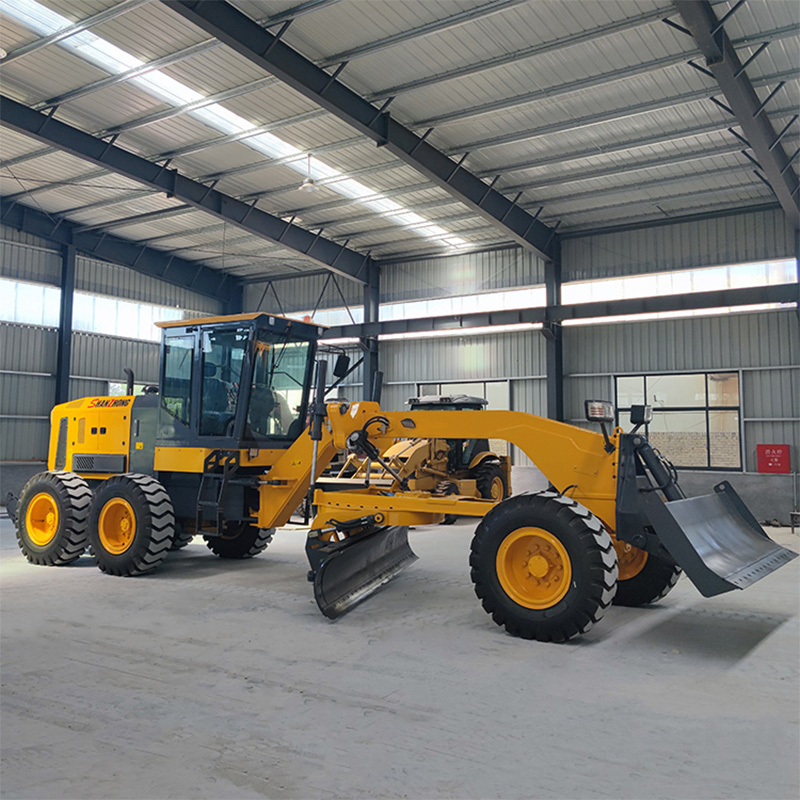

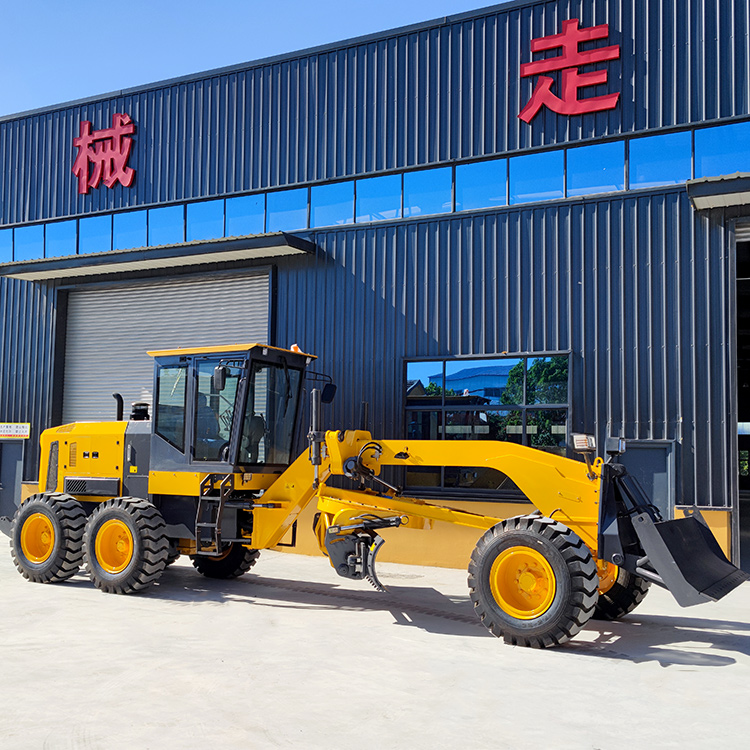

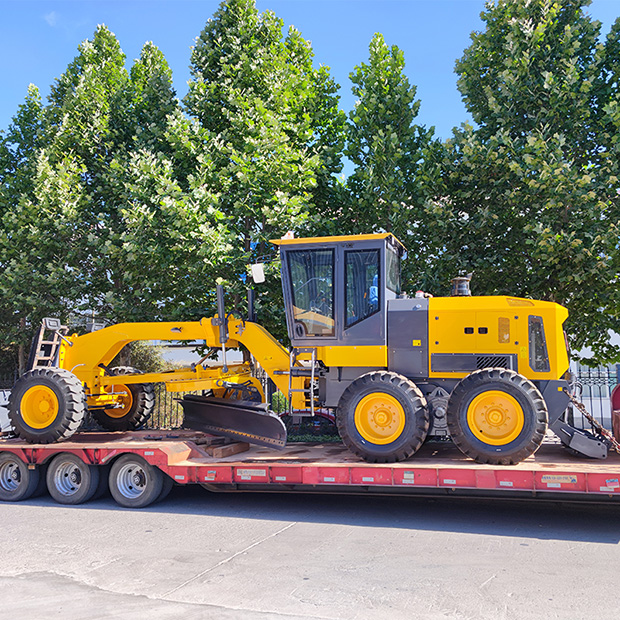

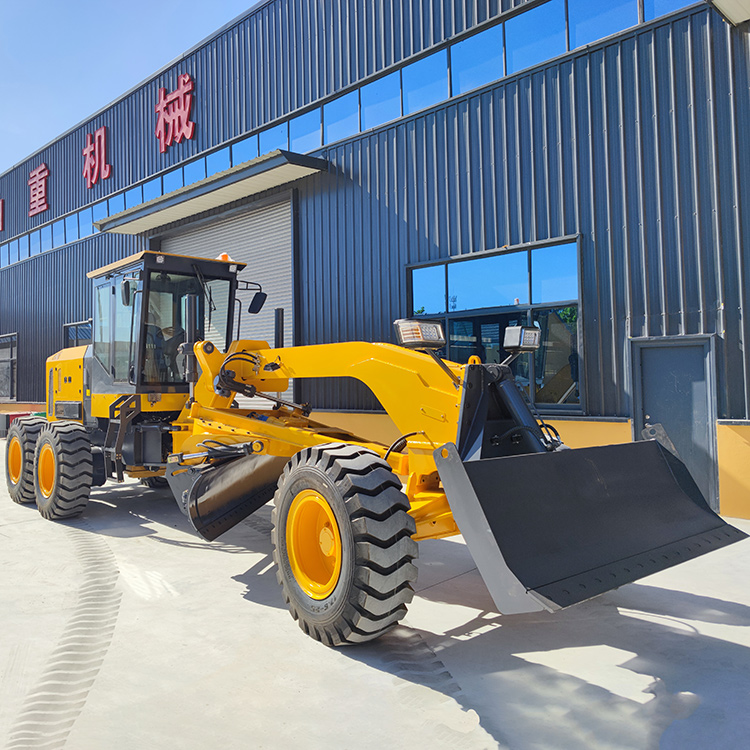

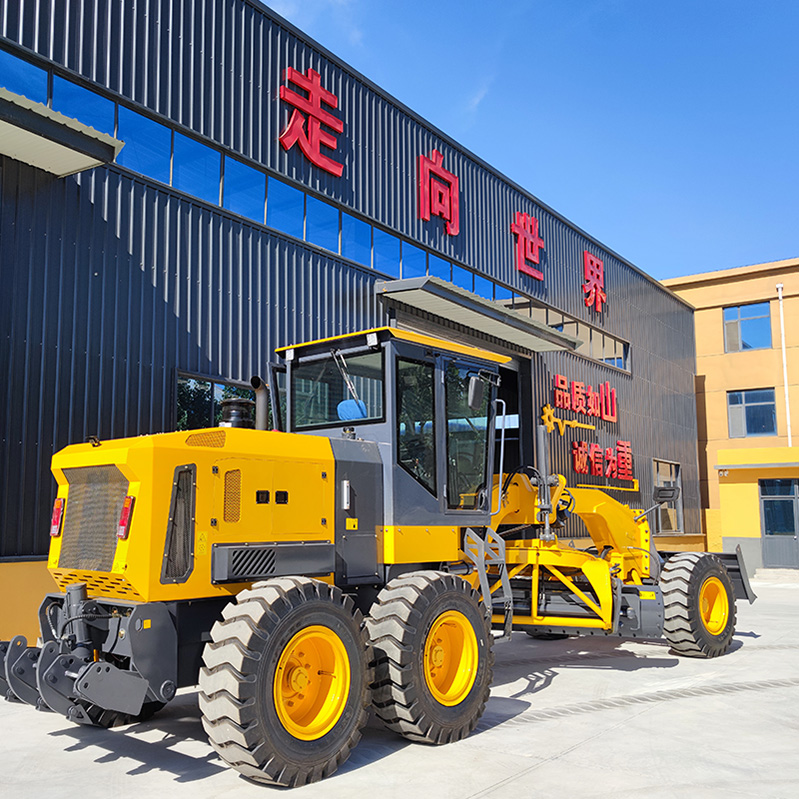

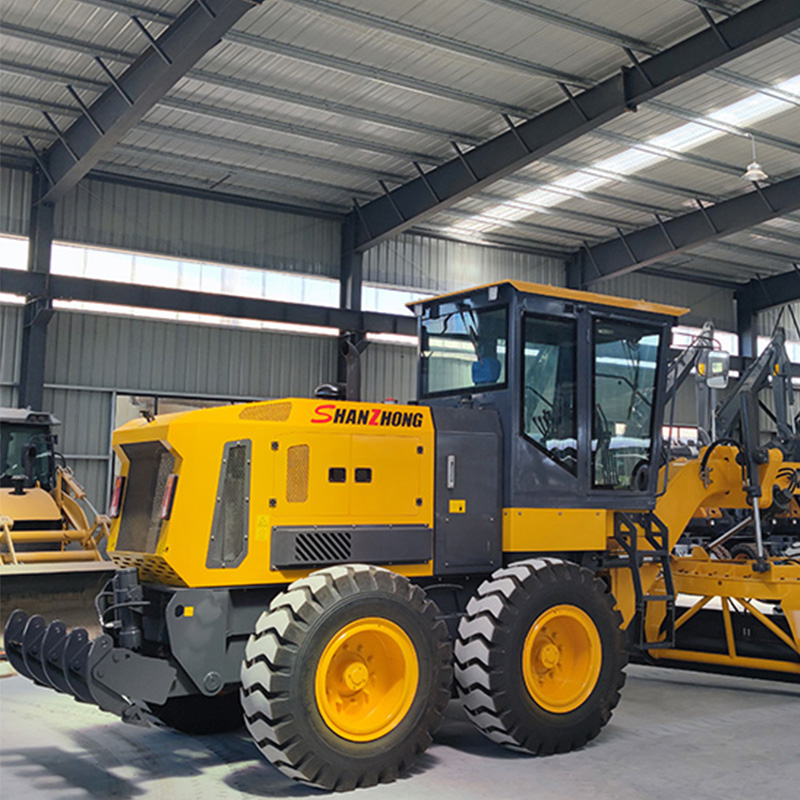

150 Motor Grader
SZP9150 Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. Lt can be used for ditching, grading, slope scraping, bulldozing, ripping, virgin land, scarifying and snow-removing etc., which is modernized construction equipment of multi –functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.
Main Characteristic:
1, CUMMINS diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
2, Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
3, Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.

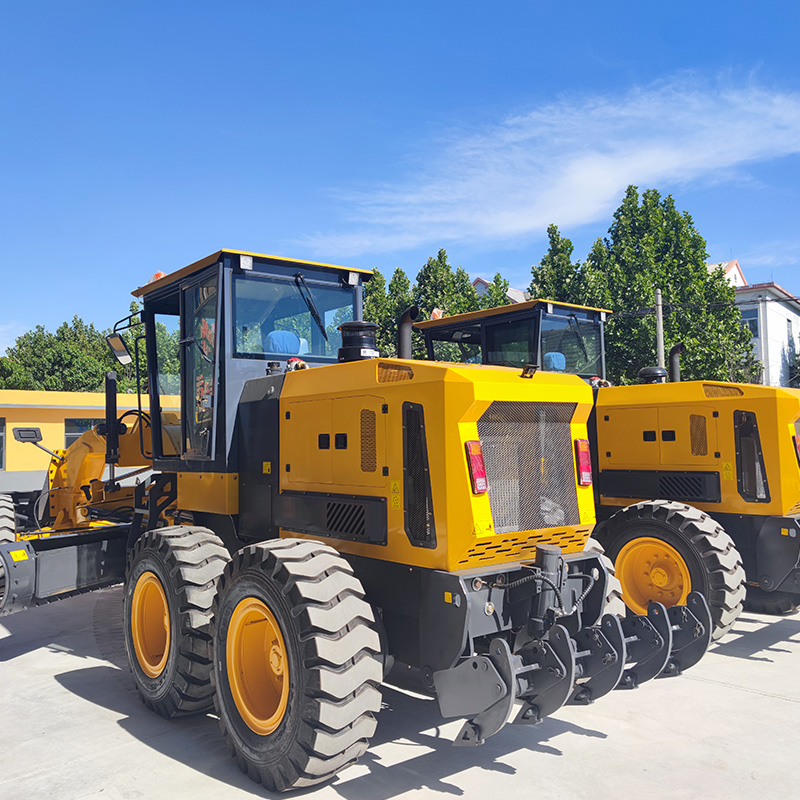

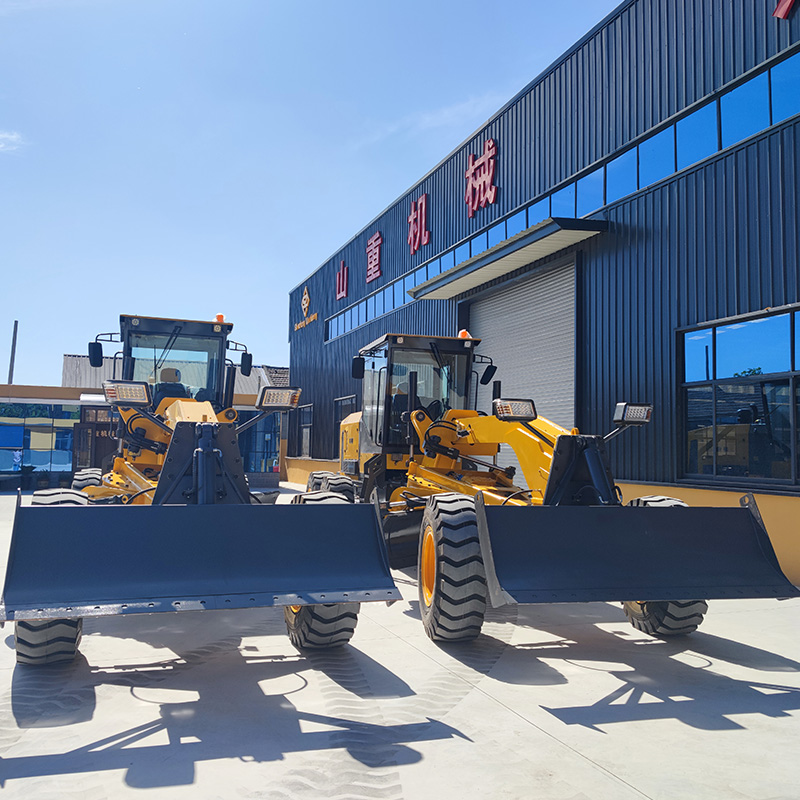

4, Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double of the blade tip control can adjust the cutting angle depending on soil quality.
5, Flexible hydraulic control system with two sets of HUSCO five-way control valve, imported hydraulic equalizing valve for the blade lifting, patent hydraulically –operated pin drawing device is designed firstly in board.
6, Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
7, Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
Product parameter
SPECIFICATIONS | ||
Overall dimension | L×W×H | 8100×2200×3150mm |
Mini ground clearance of front axle | 450mm | |
Ground clearance of rear axle | 410mm | |
Wheel tread | 1800mm | |
wheel base | 6475mm | |
Length of blade | 3650mm | |
Wheelbase of rear axles | 1650mm | |
Engine | Brand | WP6G125 |
Rated power/speed | 125hp/2400 | |
Certified capacity | 6.75L | |
Minimum fuel consumption rate | ≤230g/(kw.h) | |
Overall parameters | Overall weight | 8500kg |
Max.swinging angle of front axle | ±12° | |
Ma.steering angle of front wheel | ±40° | |
Steering angle of articulated frame | ±25° | |
Cutter diameter | 1500mm | |
Cutter size(L×H×T) | 3648×500×18mm | |
Swing angle of balde | 360° | |
Ground clearance of blade | 430mm | |
Cutting depth of blade | 380mm | |
Incination angle of blade | Forward 47°/backward 5° | |
Sliding range of blade | Left 600/right 600mm | |
Hydraulic system | Type | Open-type system |
System pressure | 16L | |
Fill capacity | Fuel | 165L |
Hyfraulic oil | 130L | |
