17 Ton China Wheel Excavator Factory

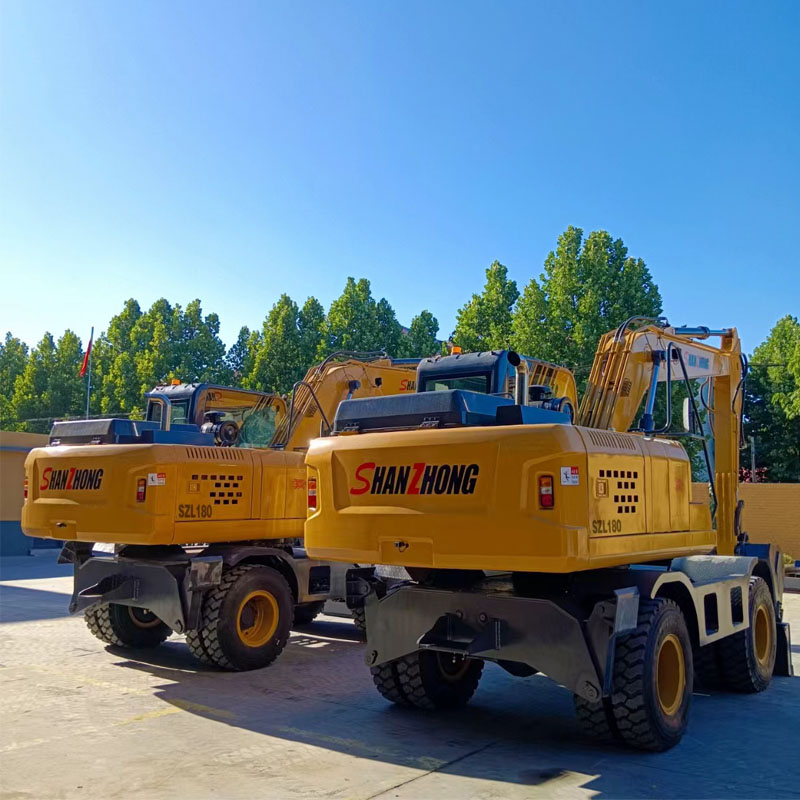

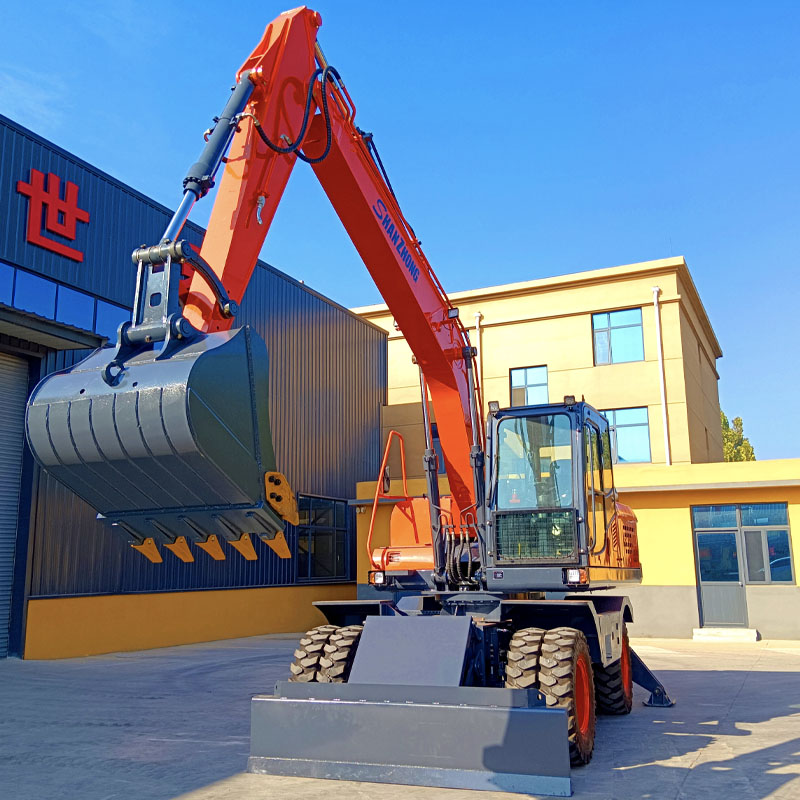

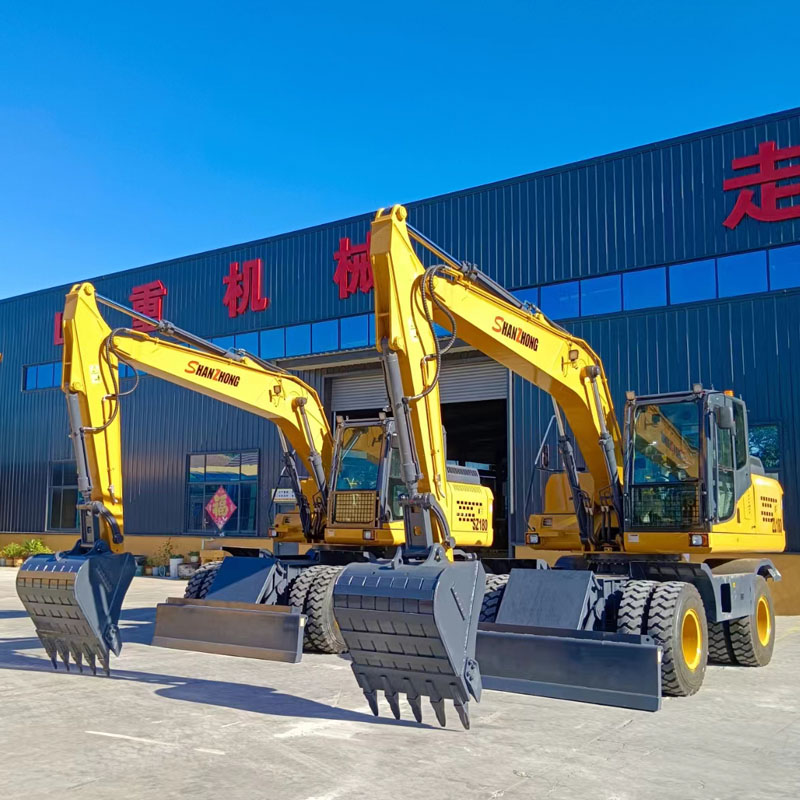

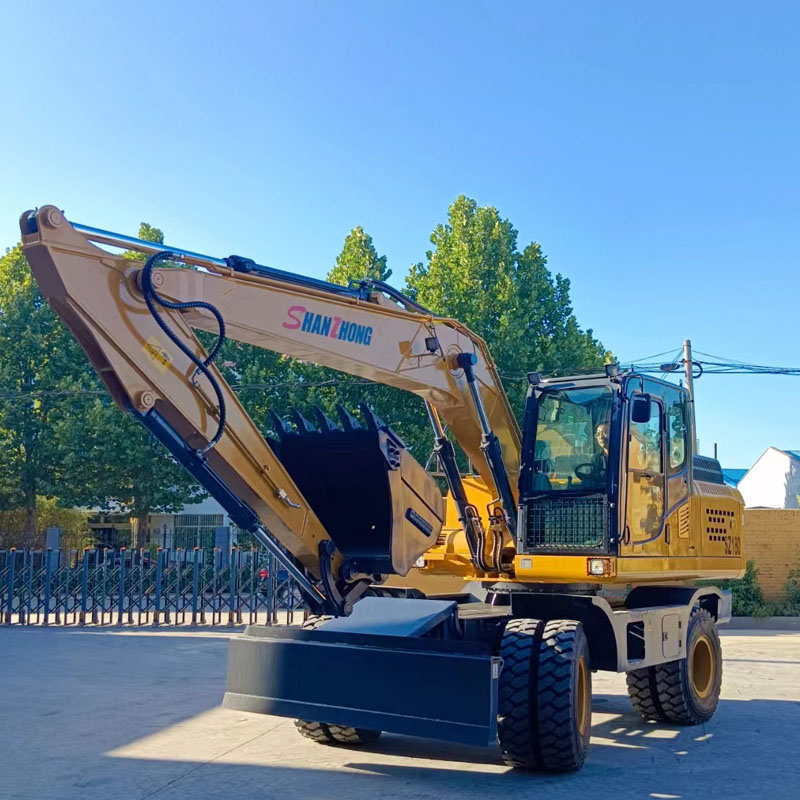

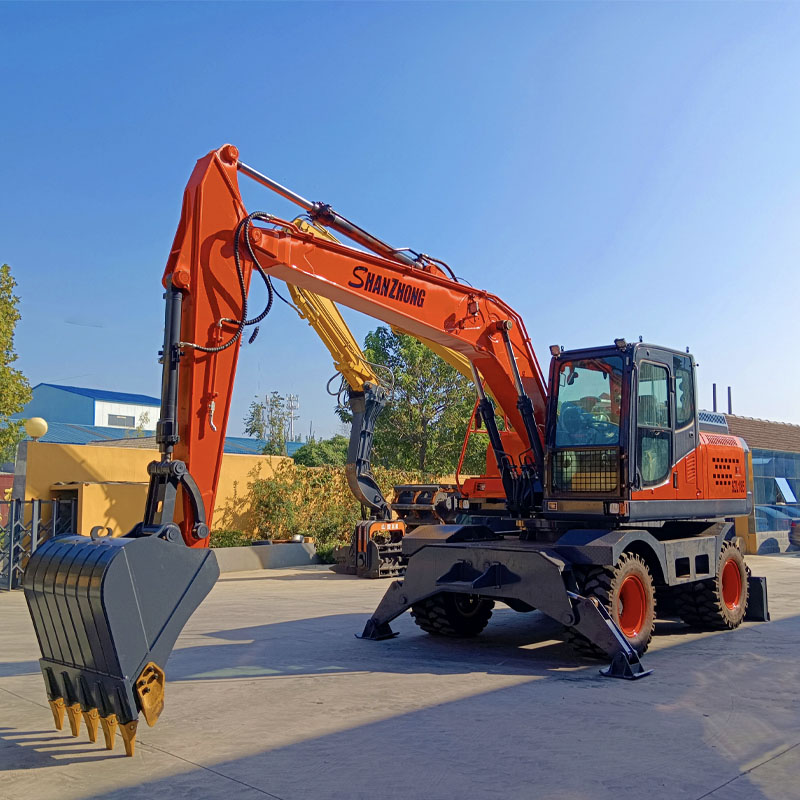

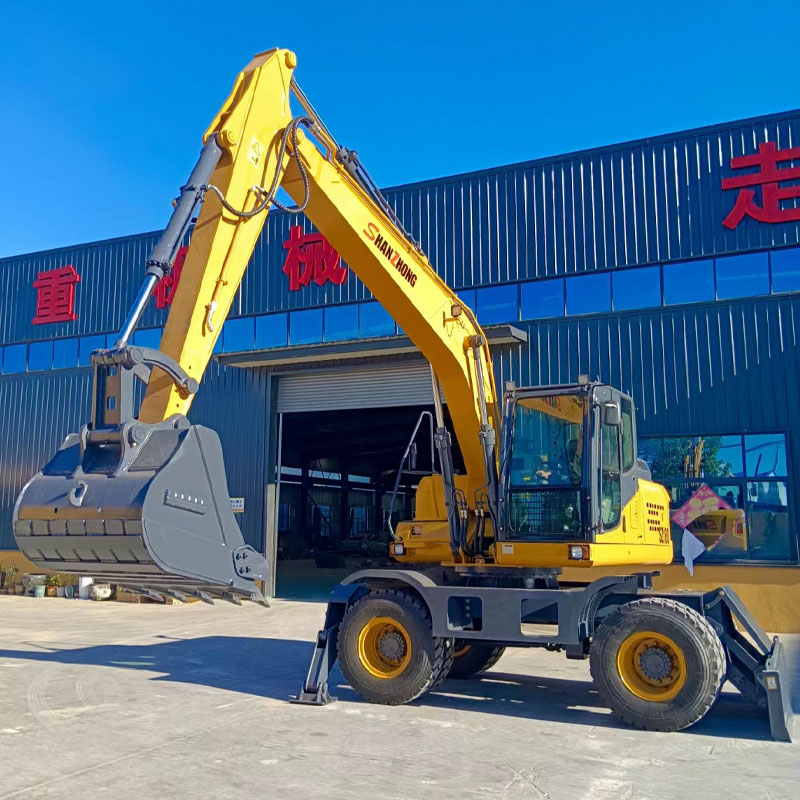

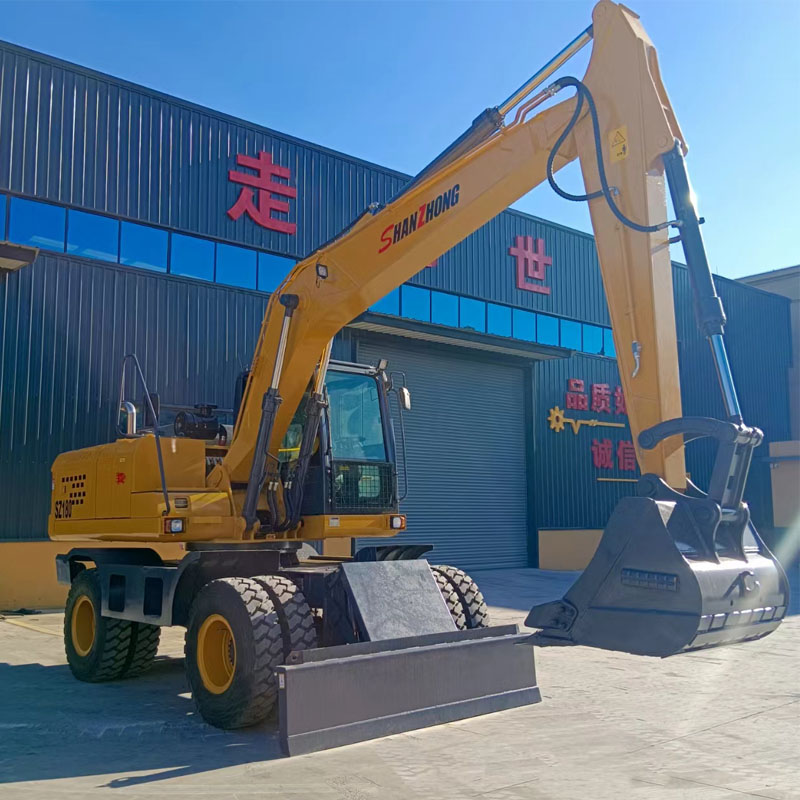

SZL180 Wheel Excavator Product Description
1.Continuously variable automatic transmission, four-wheel drive, four-wheel hydraulic oil brake, adapt to all road conditions.
2. Reinforced front push shovel with balance oil cylinder and rear outrigger design, higher stability,
3.Original imported rotary motor. The rotary speed is fast and the rotary brake is stable.
4.The original fully imported hydraulic system adopts double-pump confluence technology, and the transition speed is fast.
5.Wheel deceleration wet front and rear axles, four-layer winding oil pipes, and Doosan's standard buffer oil cylinders.
6.Customized production can be provided to meet special construction and bidding requirements.
SZL180 provides rich value returns for clients and is crucial to the fields of oil field, airport, port, urban building, irrigation, water conservation, and quick repair.
This powerful, versatile, and gorgeous SZL180 wheeled hydraulic excavator is capable of handling a wide range of working circumstances. The machine's appearance size conforms with transportation and traffic regulations.
Parameters | |||
Brand： | shanzhong | Model： | SZL180 |
Engine ： | Cummins 6 clinders 6BTAA5.9-C205 | Power： | 133kw/2200rpm |
Weight： | 17000kg | Bucket Capacity： | 0.8m³ |
Size | |||
Shipping Length： | 7840mm | Arm Length： | 4800mm |
Shipping Height： | 3240mm | Boom Length： | 3180mm |
Total Width： | 2600mm | Height of Bulldozer Plate： | 590mm |
Turntable width： | 2600mm | Height of Bulldozer Plate： | 2500mm |
Wheelbase： | 2800mm | Lifting Height of Bulldozer Plate： | 450mm |
whell Tread： | 1960mm | Bulldozer support height： | 110mm |
Radius,Swing Center To Rear End： | 2450mm | Bulldozer support height： | 420mm |
Counterweight Ground Clearance： | 1380mm | Min Ground Clearance： | 360mm |
Hydraulic Tank Capacity： | 180L | Fuel Tank Capacity： | 220L |
Working Parameter | |||
Max.Digging Radius： | 8350mm | Max.Digging Height： | 7980mm |
Max.Digging Depth： | 5525mm | Max.Digging Height： | 5880mm |
Hydraulic System Pressure： | 32MPa | Hydraulic System Flow： | 2*160L/min |
Bucket Digging Force： | 92.5kn | Arm Digging Force： | 60kn |
Rotation Speed： | 13-14/min | Travel Speed： | 28km/h |
Gradeability： | ≥60% | ||
