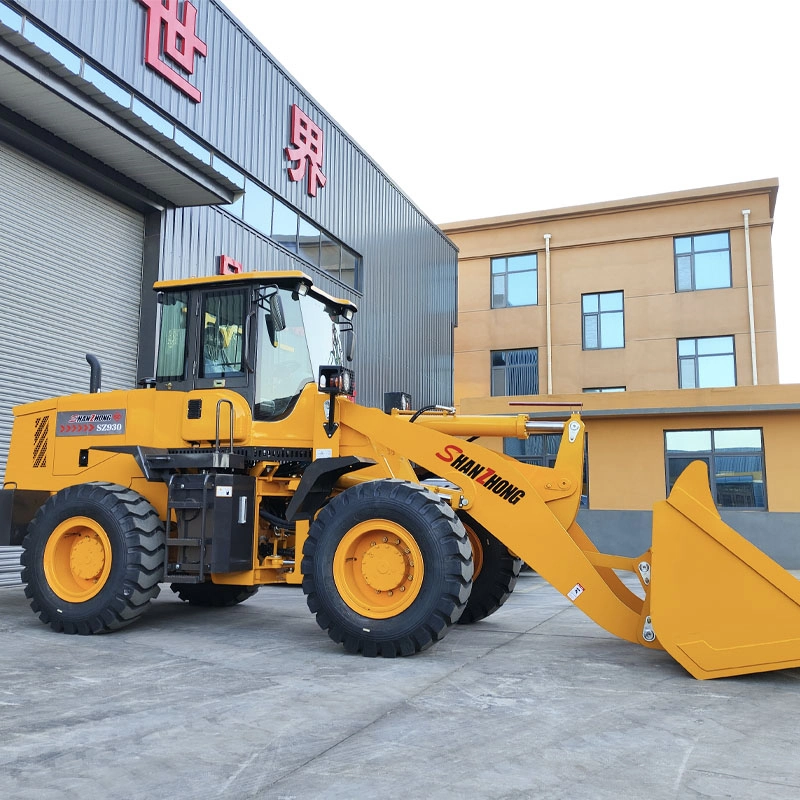

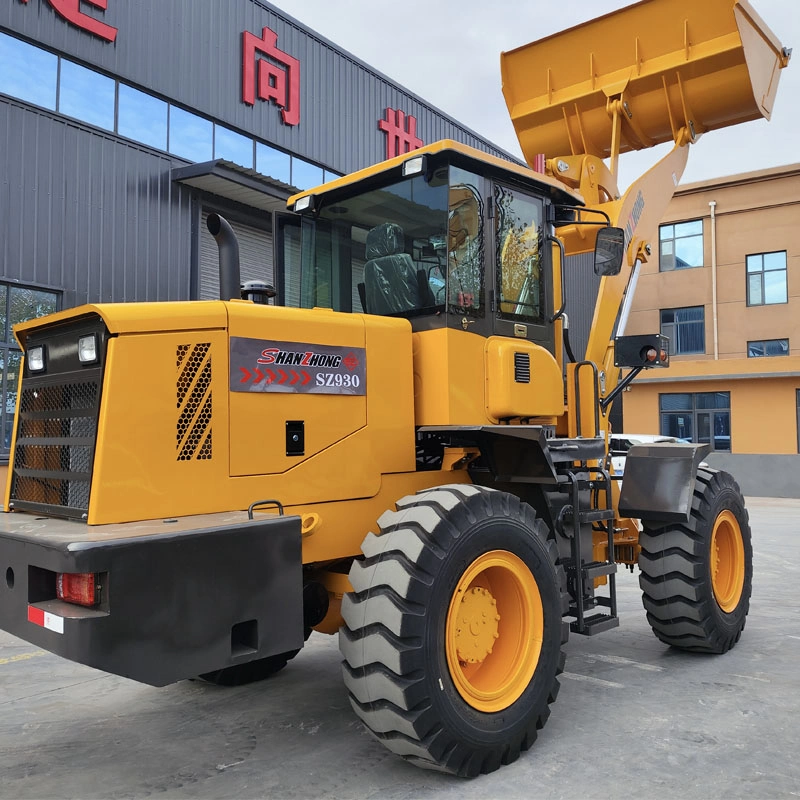

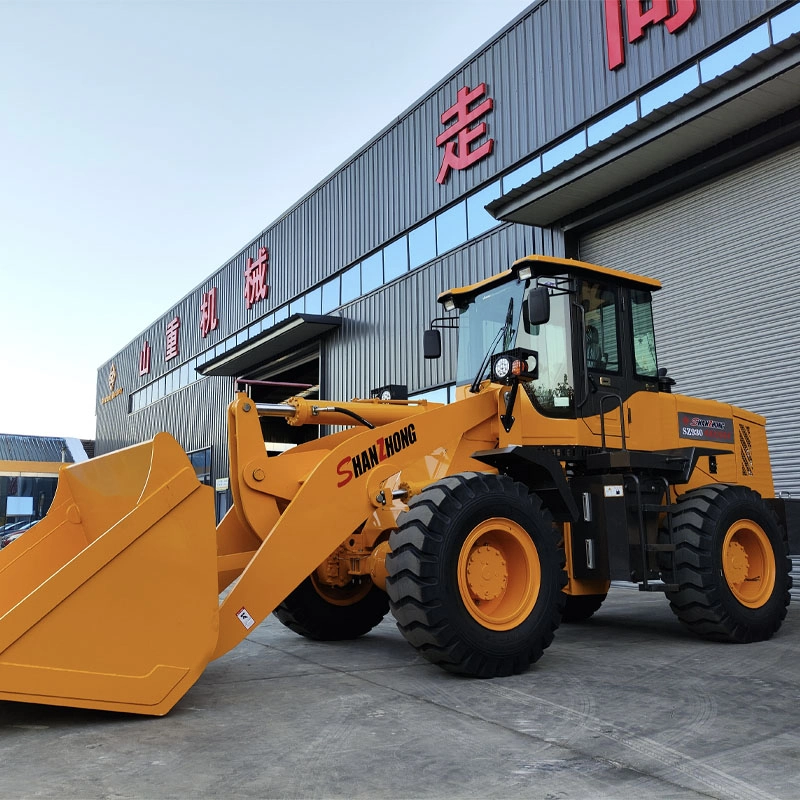

930 Wheel Loader
Product Features
1.Central articulated frame: small turning radius, strong lateral stability, flexible in narrow sites
2.Dual braking system: gas-cap oil caliper disc four-wheel brake + parking caliper disc brake, safe and reliable
3.Weichai Steyr diesel engine: powerful, low fuel consumption, dust-resistant
4.Full hydraulic control + dual-pump confluence + pilot operation: smooth and efficient actions
5.Folding engine hood: easy maintenance, customizable production available
6.Thickened hydraulic cylinder + high-efficiency radiator: strong bearing capacity, fast heat dissipation, long service life
7.Humanized cab: wide field of vision, comfortable seat, easy operation
9. Customized production can be provided to meet special construction and bidding needs.
In the field of construction machinery, wheel loaders are indispensable core equipment, and the SZ930 Wheel Loader stands out with its outstanding performance, humanized design and wide applicability. As a high-quality product integrating power, efficiency and safety, it is committed to solving the actual needs of various construction scenarios, helping target customers improve operation efficiency, reduce production costs and enhance project competitiveness. Whether it is earthwork construction, material handling or engineering bidding projects, the SZ930 Wheel Loader can deliver stable and reliable operation effects, becoming the preferred choice for professionals in the construction industry.
Efficiency Enhancement: Powerful performance and efficient systems boost work output, shortening project cycles.
Cost Reduction: Low fuel consumption and reliable quality minimize operational and maintenance costs.
Safety Guarantee: Dual braking and stable structure reduce accident risks, protecting personnel and equipment.
Flexibility Upgrade: Customization and narrow-site adaptability expand business scope and bidding competitiveness.
The SZ930 Wheel Loader is widely used in construction sites, mines, ports, warehouses, and municipal engineering. It excels in earthwork leveling, material loading and unloading, ore transportation, and road maintenance, adapting to both general and special construction demands.
Performance | 1 | rated loading | 3000kg |
2 | overall weight | 9600kg | |
3 | Mechanical operation weight | 12600kg | |
4 | bucket capacity | 1.53-2.5m3 | |
5 | maximum traction force | 97KN | |
6 | maximum breakout force | 120KN | |
7 | maximum grade ability | 30° | |
8 | maximum dump height | 3200mm | |
9 | maximum dump reach | 1006mm | |
10 | overall dimension (L×W×H) | 6890*2430*3070mm | |
11 | minimum turning radius | 5097mm | |
Engine | 12 | model | Deutz WP6G125E333 |
13 | type | Euro II,Direct injection inline 6-cylinder, 4-stroke | |
14 | NO. of cylinder-bore*stroke | 6-105*130 | |
15 | rated power | 92kw—2000r/min | |
16 | maximum torque | 760N.m | |
17 | min. fuel-consume ratio | ≦210Kw h | |
Transmission system | 18 | torque converter | YJ315-X |
19 | gearbox mode | Power shaft normally engaged straight gear | |
20 | gears | 4 forward 2 reverse | |
21 | maximum speed | 39km/h | |
Drive axles | 22 | main reducing spiral | bevel gear grade 1reduction |
23 | decelerating mode | Planetary reduction grade 1 | |
24 | wheel base (mm) | 2630mm | |
25 | wheel tread | 1200mm | |
26 | ground clearance | 400mm | |
Hydraulic system | 27 | system working pressure | 16,5MPa |
28 | boom lifting time | 4.6s | |
29 | total time | 8.2±0.5s | |
Brake system | 30 | service brake | air assist disc brake on 4 wheels |
31 | parking brake | Manual disk brake | |
Tyre | 32 | type specification | 17.5-25 |
33 | front tyre pressure | 0.4Mpa | |
34 | rear tyre pressure | 0.35Mpa |
