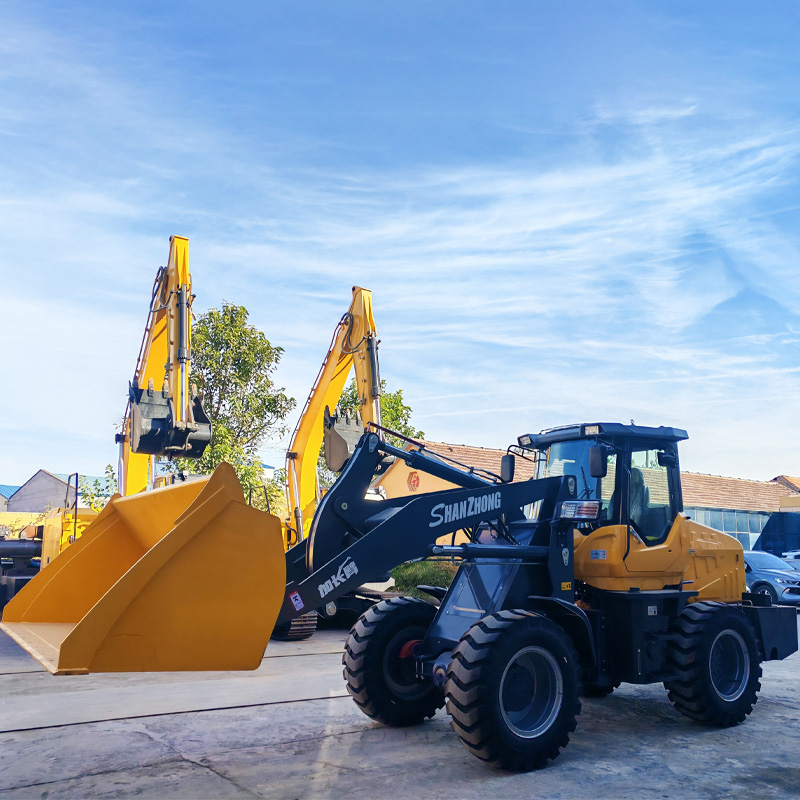

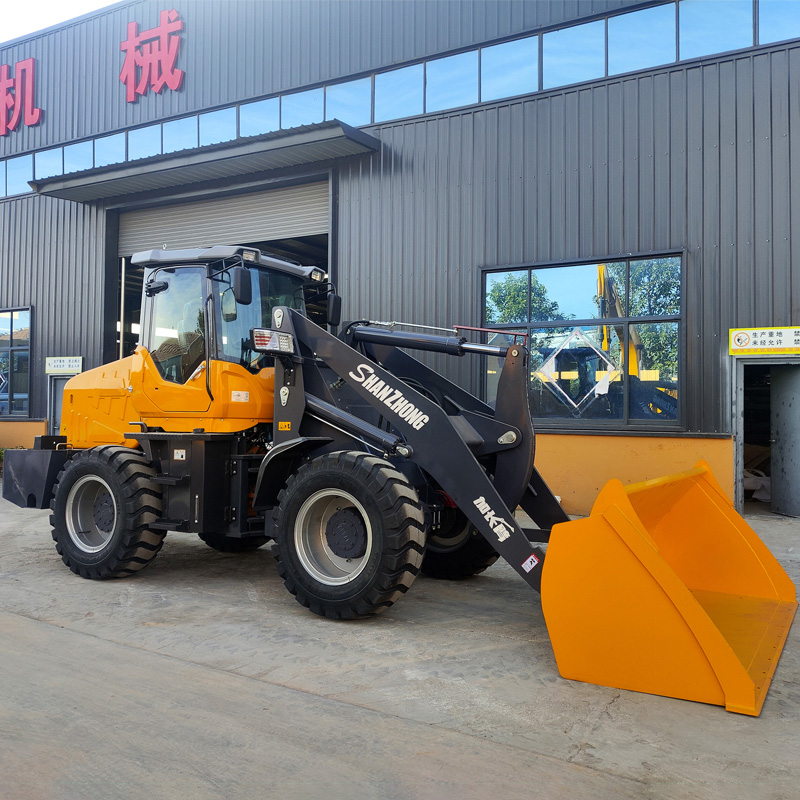

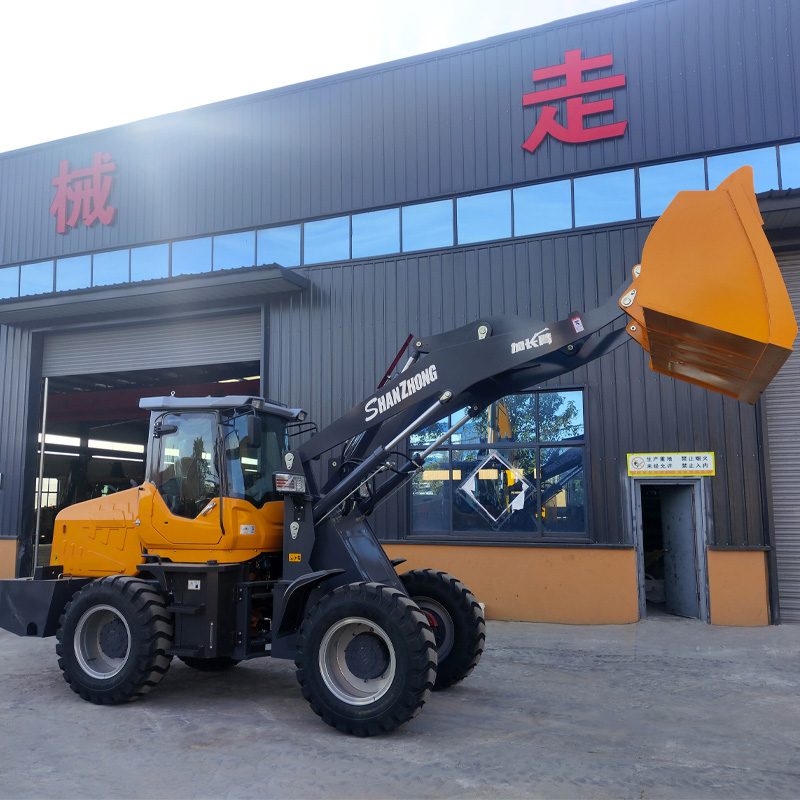

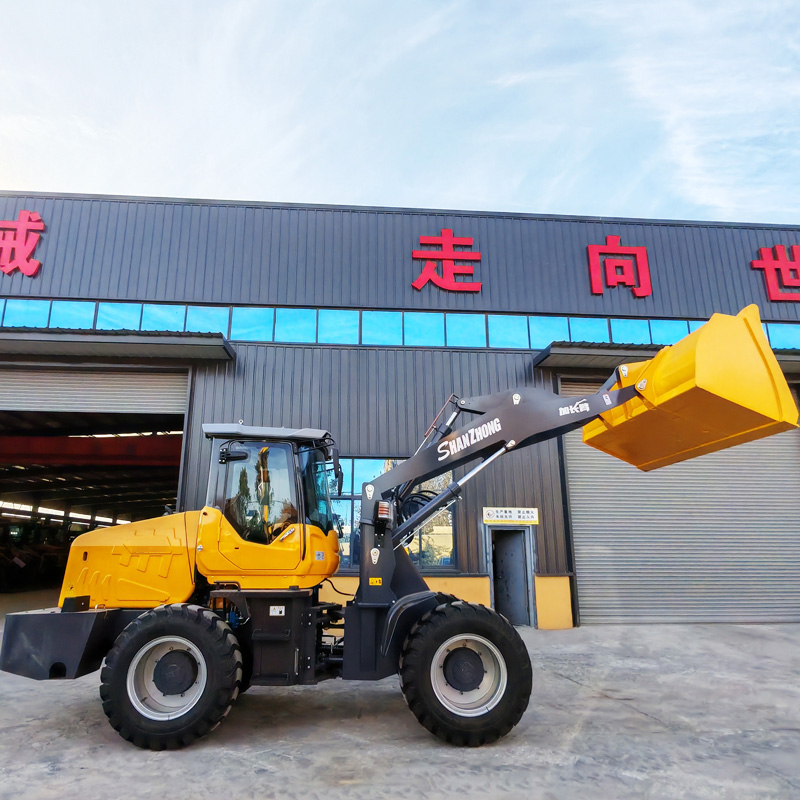

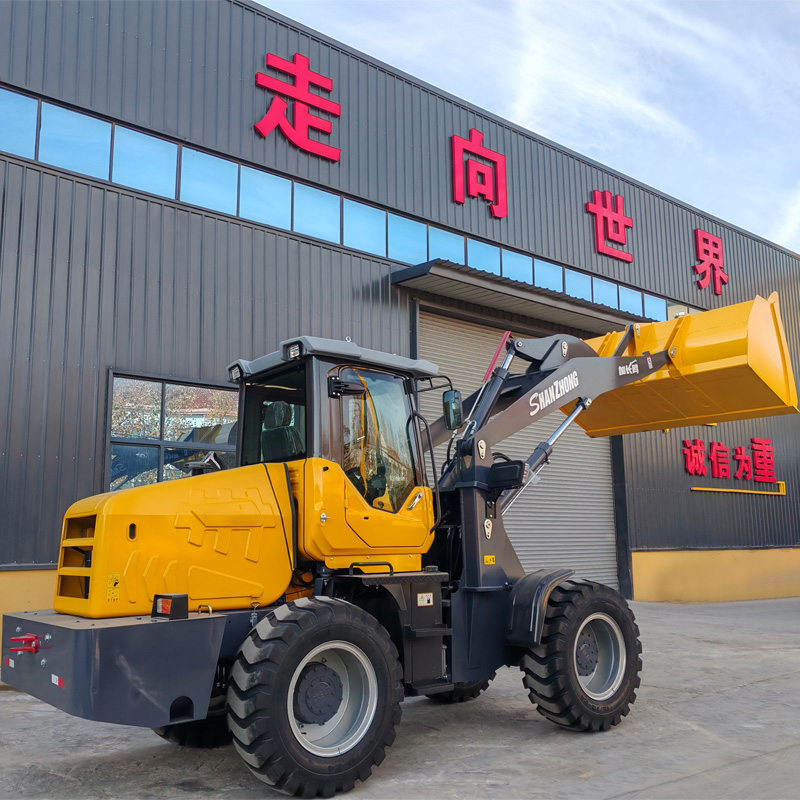

SZ948 Wheel Loader
Advantages and features:
1) The central articulated frame has a small turning radius, which is convenient for operation in narrow places.
2) The air-over-oil caliper disc four-wheel brake system is adopted, and the parking brake adopts a caliper disc brake.
3) The Yunnei diesel engine is adopted, which has low fuel consumption, low noise and reliable performance;
4) The working device is hydraulically operated, the whole machine is easy and flexible to operate, and the movement is stable and reliable.
5) The foldable large side door steel structure engine hood is beautiful and easy to maintain.
6) The loader has a Lonking appearance configuration and is equipped with an enlarged grain bucket, which saves time and effort at work.
1.Product parameter introduction:
Performance | 1 | rated loading | 2600kg |
2 | overall weight | 6500kg | |
3 | Mechanical operation weight | 9000kg | |
4 | bucket capacity | 2.0m3 | |
5 | maximum traction force | 58KN | |
6 | maximum breakout force | 62KN | |
7 | maximum grade ability | 30° | |
8 | maximum dump height | 5000mm | |
9 | maximum dump reach | 2600mm | |
10 | overall dimension (L×W×H) | 7090*2600*2970mm | |
11 | minimum turning radius | 5097mm | |
Engine | 12 | model | Yunnei YN4EL120-30CR |
13 | type | China III、Inline 4-cylinder, 4-stroke | |
14 | rated power | 88kw—2400r/min | |
Transmission system | 15 | torque converter | YJ315-X |
16 | gearbox mode | Power shaft normally engaged straight gear | |
17 | gears |
4 forward 2 reverse | |
18 | maximum speed | 30km/h | |
Drive axles | 19 | main reducing spiral | bevel gear grade 1reduction |
20 | decelerating mode | Planetary reduction grade 1 | |
21 | wheel base (mm) | 2660mm | |
22 | wheel tread | 1590mm | |
23 | ground clearance | 400mm | |
steering system
| 24 | Steering type | Articulated body, hydraulic power steering |
Hydraulic system | 25 | system working pressure | 16.0MPa |
26 | boom lifting time | 4.0s | |
27 | total time | 8.2±0.5s | |
Brake system | 28 | service brake | air assist disc brake on 4 wheels |
29 | parking brake | Manual disk brake | |
Tyre | 30 | type specification | 16/70R24 |
31 | front tyre pressure | 0.4Mpa | |
32 | rear tyre pressure | 0.4Mpa | |
Note: Product configuration parameters will be continuously updated. Please contact us for final confirmation of the latest configuration parameters. | |||

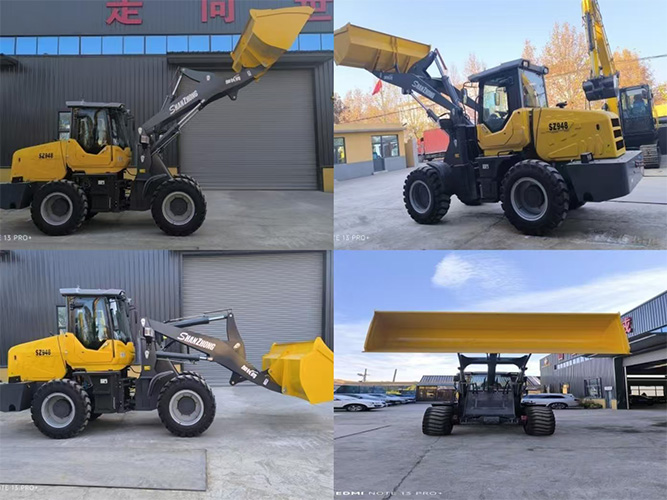

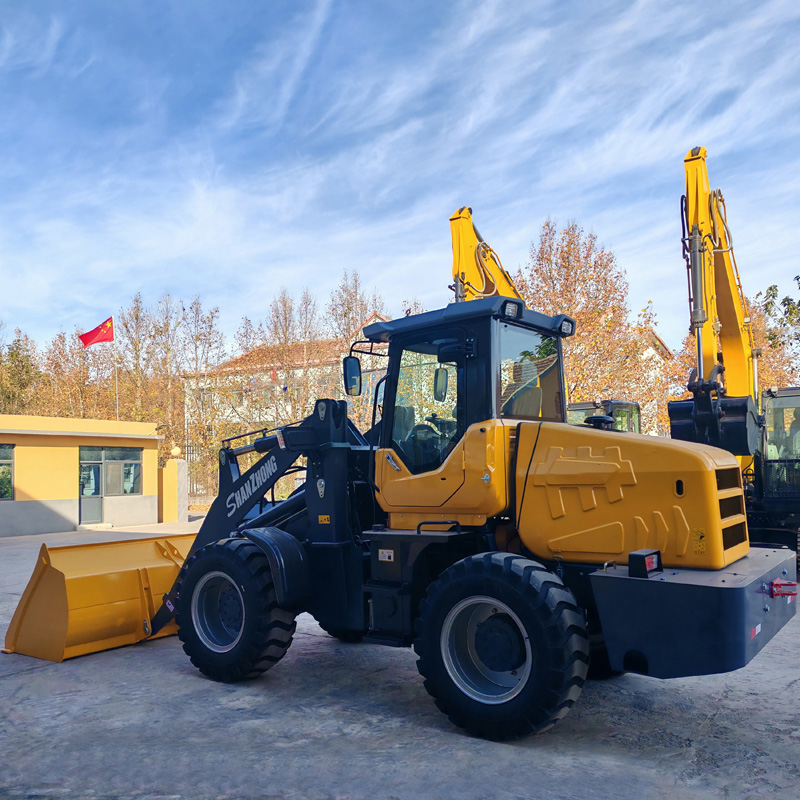

2.Product panoramic display:

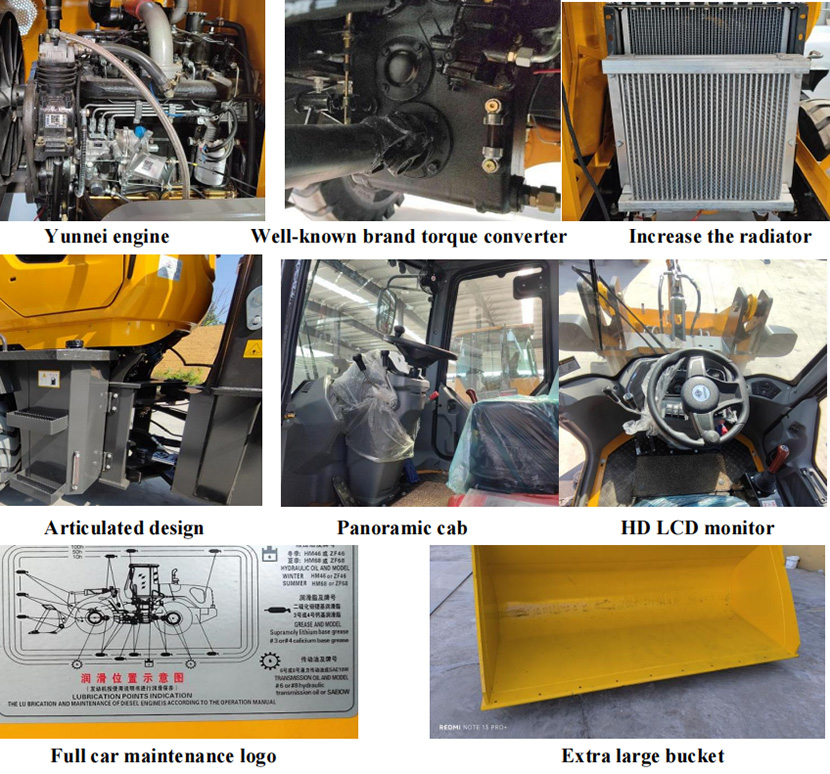

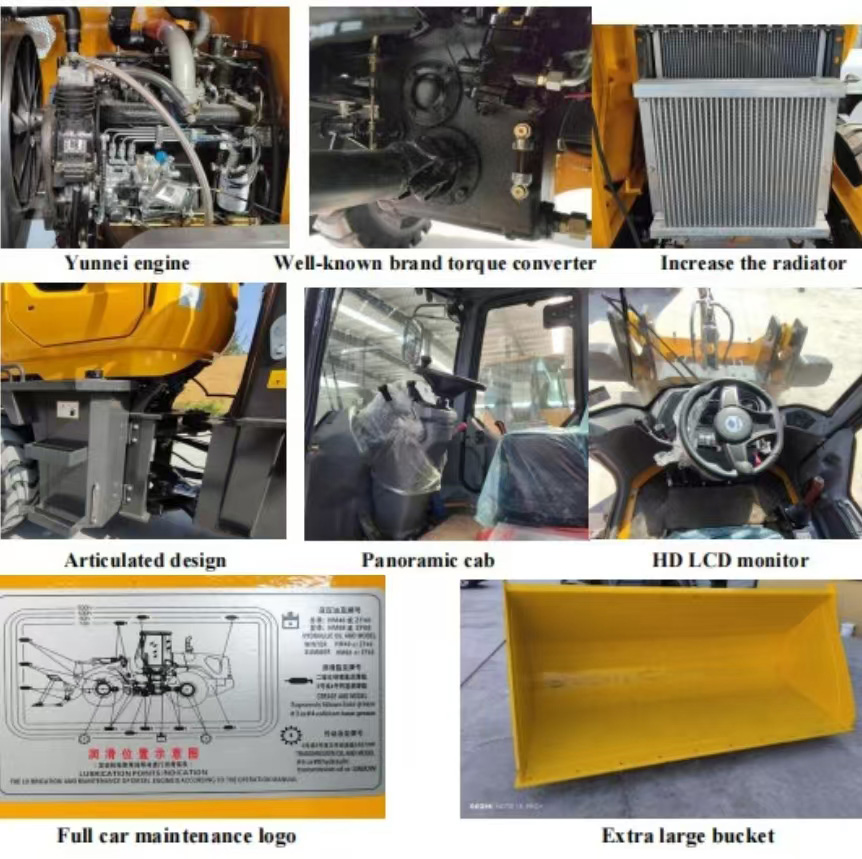

3.Configurationanddetailsdisplay:

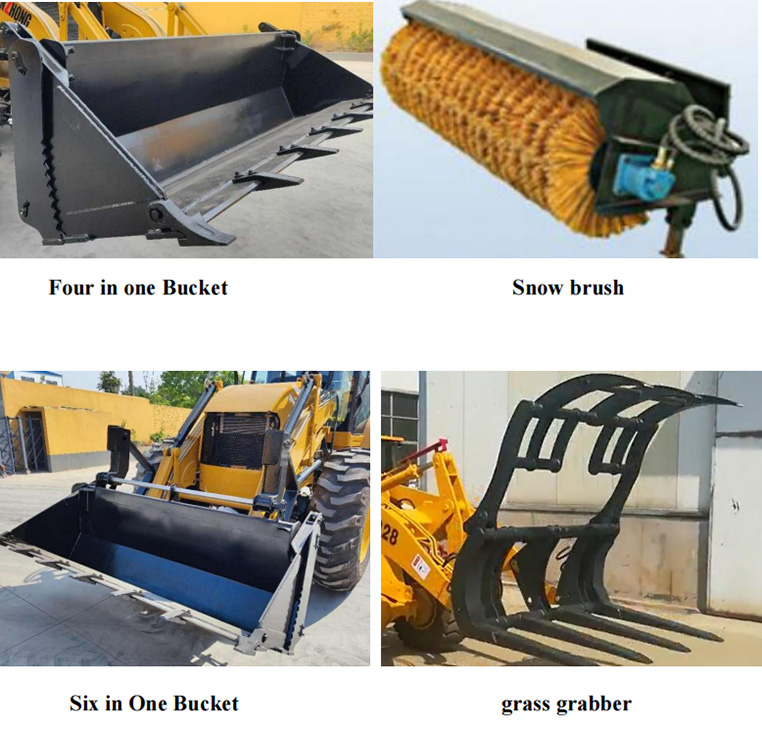

4.Optional auxiliary equipment display：

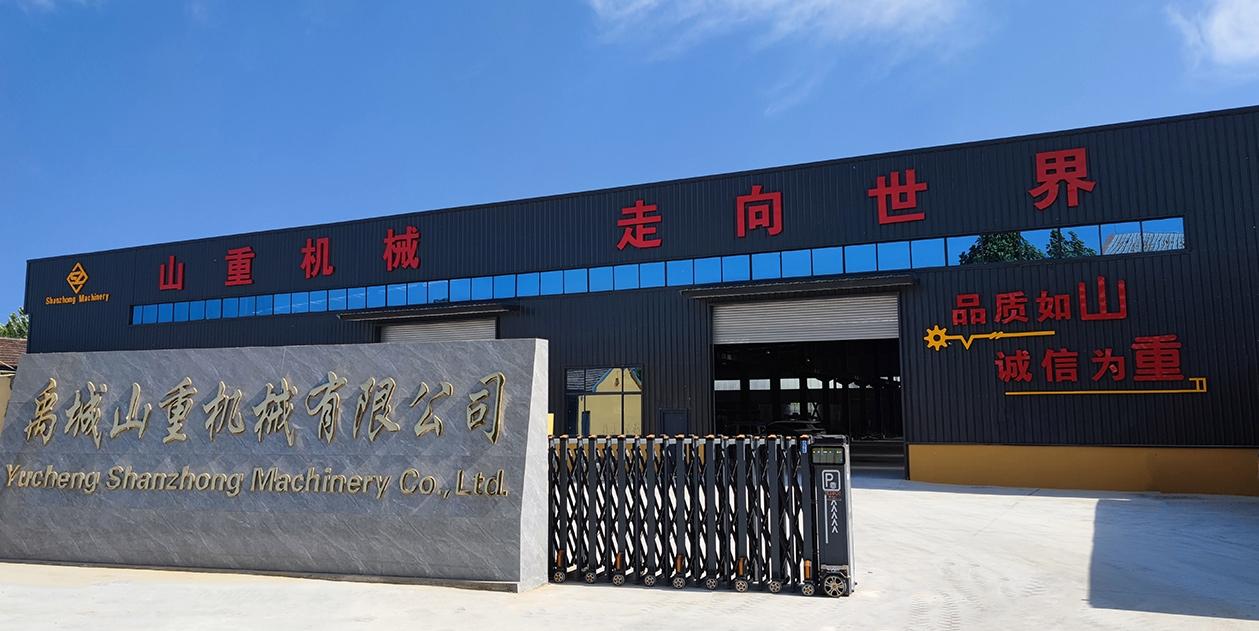

5.About Us:
Yucheng Shanzhong Machinery is a manufacturer specializing in the research and development, production and manufacturing of road construction machinery such as wheeled excavators (4-21 tons), crawler excavators (1-40 tons), loaders, backhoe loaders, graders and rollers, as well as supporting auxiliary tools. The group company was developed from Shandong Murphy Machinery Co., Ltd. and Jinan Hengte Machinery Co., Ltd. It has 19 years of experience in research and development, manufacturing and export. Its products have been exported to more than 30 countries and regions including Central.Asia, Africa, Southeast Asia, South Asia, South America, the Middle East, Europe, etc., and are highly recognized by customers. Professional automated production lines and perfect management systems provide you with
reliable and stable high-quality products.
6. terms:
1) Payment terms: 30% prepaid by wire transfer, 70% before shipment.
2) Delivery time:10 working days after deposit payment, up to 20 working days after deposit receipt for more than two units.
7.Warranty period: 12 months or 2000 working hours, whichever comes first.
8.Product Transportation:
1) Ocean Freight: (Qingdao Port/Shanghai Port)
Usually two units face to face in one 40HQ, bulk or roll-on/roll-off at sea.
2) Truck Transportation:
Domestic distribution transportation/special truck, foreign truck to Central Asian countries, Vietnam, Mongolia, etc.
